Lightweight 1.08KG Whole-House Pre Filter with Anti-Block Structure and Systemwide Protection
High Flow Tap Water Pre Filter with Food Grade Stainless Steel Screen
Food Grade Stainless Steel Screen Tap Water Pre Filter High Flow Safe Household Water Filtration System
Why Install a Pre-Filter?
This is where the BriskSpring Pre-Filter plays a crucial role.
Key Product Information

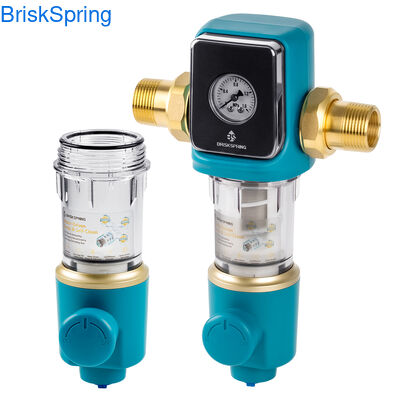

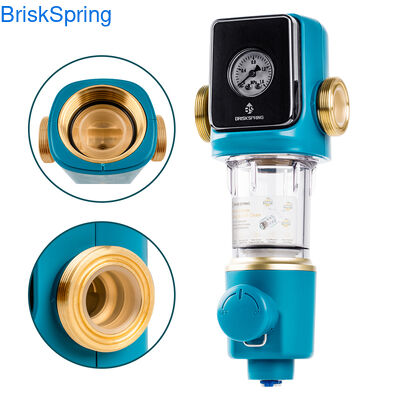

The BRISKSPRING Pre-Filter is a compact, lightweight solution at 1.08KG, designed for easy installation. Its SUS 316 stainless steel mesh ensures corrosion resistance and long-lasting performance. With a capacity of 5 tons per hour and a 22 GPM flow rate, it removes sediment, rust, and impurities efficiently. Compatible with most home water systems, it functions under 0.15-1 MPa pressure.
Featuring a built-in sediment trap, cleaning and maintenance are simple. Switching to the BRISKSPRING Pre-Filter reduces bottled water usage, lowers expenses, and provides fresh, safe tap water for a healthier and more sustainable lifestyle.
Primary Features:
- Clog-Resistant Design - The water flow powers a scraper that continuously cleans the mesh and filter housing. Minimal manual maintenance is required --only occasional flushing. Includes a clear pressure gauge for monitoring.

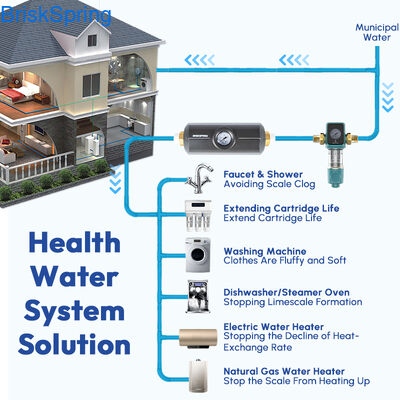

- Full-System Protection - Filters out sediment, rust, sand, debris, and even insect eggs. Safeguards household health and protects connected appliances such as faucets, showers, garden hoses, water heaters, washing machines, and RO systems.
- Certified Safe Materials - Constructed from SGS-certified BPA-free plastic, 316L stainless steel mesh, silicone scraper, and 95% POM. Lead-free and non-toxic, designed for safe, long-lasting use.
Technical Parameters
| Model Number |
Pre-10th generation(SQ-550-B) |
| Control |
Manual and Automatic Cleaning |
| Flow Rate |
22 Gallons Per Minute |
| Operating Temperature |
+5℃ ~ +45℃ |
| Mesh Material |
SUS 316 Stainless Steel |
| Filter Rating |
40μm And 300μm |
| Applicable Water Quality |
Municipal Tap Water |
| Removes |
Sediment, Rust, Chlorine, and Other Impurities |
| Water Flow |
4T/H |
| Item Weight |
1.08 KG |

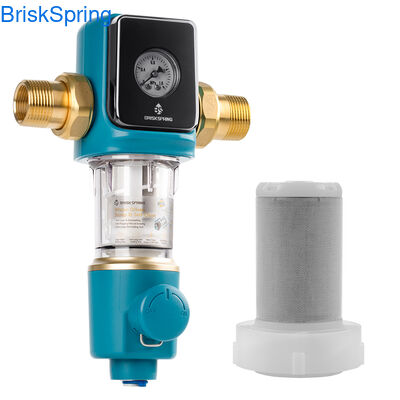

1.Ultra-high water flow, equipped with a 316L food-grade stainless steel precision mesh membrane.
2.Patented water-driven self-cleaning technology effectively removes intercepted impurities without the need for disassembly or manual cleaning.
3.Core components are made from specially selected imported materials, offering strong pressure resistance and reliable safety.
4.Explosion-proof transparent housing for visible filtration performance and intuitive backwash monitoring, making it more user-friendly.
5.Thorough cleaning and drainage: forward rotation enables manual scraping of filter bottle and mesh impurities, while reverse rotation activates powerful water-driven flushing for large-particle discharge.
Applications
Frequently Asked Questions
Q: What kinds of contaminants can the water filters eliminate?
A: Our water filters effectively remove impurities like sediment, unpleasant tastes and odors, hardness, and bacteria to improve water quality.
Q: Are there any photos of installations by users?
A: Yes, here is some feedback along with installation pictures from one of our customers in the US.
Q: Where is this product manufactured?
A: The product is made in our own factory located near Shanghai.
Q: What filtering technology does this product utilize?
A: This is our 10th generation filter featuring water-driven technology to eliminate sediment. Unlike traditional manual scraping filters, it uses hydraulic drive to instantly clean the filter screen by scraping off impurities, preventing clogging caused by infrequent maintenance.
Q: What kind of performance testing has the product undergone?
A: It has passed:
- 200,000 cycles of 12kg water hammer testing
- Burst pressure test up to 64kg
- Extreme cold temperature test down to -30°C
These tests ensure the filter bottle is frost-resistant and explosion-proof, guaranteeing safe operation without risk of bursting.
Q: How can I contact you for a quote?
A: Please send an email to rina@briskspring.com or message us on WhatsApp at +86 19857451383.
For more information or inquiries, please contact our sales team.
